WatchGuard® – Core e Series

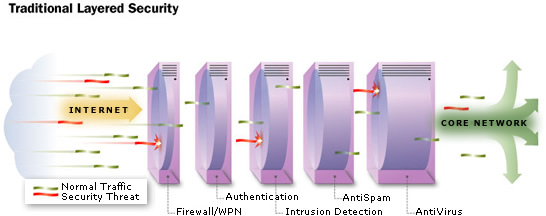

The Firebox® X Core unified threat management solution provides the most complete network security in its class, integrating application proxy firewall and VPN with anti-spyware, anti-spam, anti-virus, intrusion prevention, and URL filtering. Because of its intelligent layered security architecture, the appliance coordinates multiple internal defense layers to enhance both protection and efficiency. All security capabilities are managed with a single intuitive user interface that supplies simple drag-and-drop VPN creation, comprehensive logging, rich reporting, and real-time monitoring out of the box - with no hidden costs. Upgrade to Fireware® Pro at any time to integrate an advanced networking feature set.

• Firebox® X1250e
• Firebox® X750e
• Firebox® X550e

WatchGuard® Model	Firebox® X1250e	Firebox® X750e	Firebox® X550e
Ideal For	Medium businesses requiring a multi-layered security solution with centralized management	Small businesses/branch offices requiring an affordable, integrated appliance that grows with their needs	Small businesses requiring an affordable, integrated security appliance with unmatched ease of use
Hardware
Model Upgradeable	N/A
Interfaces	8: 10/100/1000 Fast Ethernet	8: 10/100 Fast Ethernet	4: 10/100 Fast Ethernet
DMZs	Up to 6	Up to 6	Up to 2
Security
Application Proxies	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP
Intrusion Prevention (DOS, DDOS, PAD, port scanning, spoofing attacks, address space probes, and more)
Wireless Guest Services	N/A	N/A	N/A
User Authentication with transparent Windows authentication
Performance
Firewall Throughput	1.5 Gbps	750 Mbps	300+ Mbps
VPN Throughput	100 Mbps	50 Mbps	35 Mbps
Concurrent Sessions	200,000	75,000	25,000
VPN Tunnels
Branch Office VPN Tunnels (Max.)	600	100	35 (Upgradeable to 45)
Mobile VPN with SSL Incl/Max	1/500 with Fireware® Pro upgrade	1/300 with Fireware® Pro upgrade	1/75 with Fireware® Pro upgrade
Mobile VPN with IPSec Client Licenses (Bundled)	400	50	5
Mobile VPN with IPSec Tunnels (Max.)	400	100	75
VPN Authentication
Management
Centralized (Multibox) Management. Optional licenses enable Drag and Drop VPN and one-touch Edge updates.	4-device WatchGuard System Manager license included.	4-device WatchGuard System Manager license included.	1-device WatchGuard System Manager license included.
Networking Features
Dynamic NAT
Static NAT
One to One NAT
VLAN	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
Policy-Based Routing	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
WAN Failover
Multi-WAN Load Balancing	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
Server Load Balancing	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
Traffic Management/QoS	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
High Availability (Active/Passive)	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
Dynamic Routing	Optional with Fireware® Pro	Optional with Fireware® Pro	Optional with Fireware® Pro
VoIP (SIP and H.323) Support
Additional Security Subscriptions
spamBlocker with Virus Outbreak Detection	Optional	Optional	Optional
Gateway AV/IPS with Virus Quarantine	Optional	Optional	Optional
WebBlocker with HTTPS URL filtering	Optional	Optional	Optional
LiveSecurity® Service	90-Day or 1-Year Initial Subscriptions Available	90-Day or 1-Year Initial Subscriptions Available	90-Day or 1-Year Initial Subscriptions Available
